Cabling Tools

Pasted image 20260520215346

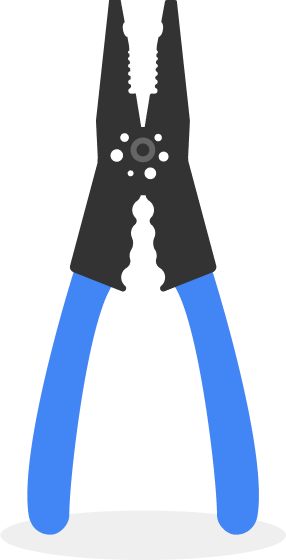

Crimper

 A crimper is a hand-held tool that looks like a set of pliers. It is used to squeeze down or crimp wires.

Recreated - Crimper

Cable Stripper

 A cable stripper is another handheld device that also looks like pliers. It’s purpose is to remove the protective rubber coating from cables.

Recreated - Cable Stripper

Wi-Fi Analyzer

 A WiFi analyzer is a scanner that analyzes the power and quality of the WiFi in an area. It also collects data about the WiFi and its circumstances.

Recreated - WiFi Analyzer

Toner Probe

 A toner probe is a part of a set of devices that are used for finding ethernet and other internet connectors. One device plugs into a cable, while the other device, the tone probe, uses a tone which gets louder as it gets closer to the device plugged into the cable. (Meyers, 2022).

Recreated - Toner Probe

Punch Down Tool

A Punch Down Tool or Krone Tool is used for punching down wires into punch down panels or jacks. First the protective covering is taken off the wires, then the wires are punched into place.

Recreated - Punch Down Tool

Cable Tester

 A cable tester digitally measures integrity of the cable for compliance with developed cabling standards. They measure several parameters:

  • Attenuation

  • Impedance

  • Noise

  • Near-End Crosstalk

  • Attenuation to Crosstalk Ratio (ACR)

  • PowerSum NEXT (Network Encyclopedia, 2022).

Recreated - Cable Tester

Loopback Plug

A loopback plug is a device that tests ports. Wires are connected in a loop that sends traffic back to the port after it receives it.

Recreated - Loopback Plug

Network Tap

 A network tap is a device that copies traffic information for use in monitoring devices. It is an external device.
